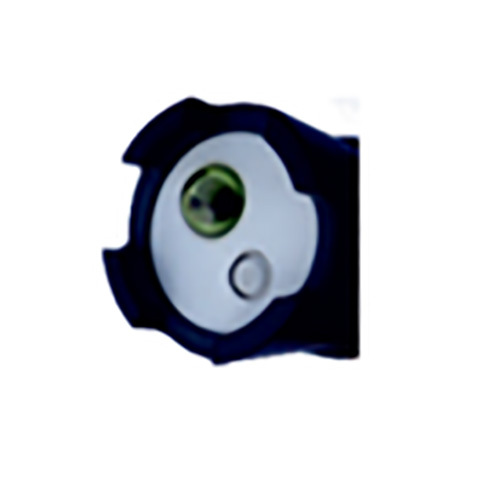

MS pH 36-pH Sensor

FEATURE

• Annular PTFE Junction 🡪 Fast Response
• Due to increased porosity, Increased Sensor Life
• Suitable for Viscous, Slurry Application
• Easy cleaning
• Filled with Gel 🡪 Helps to maintain
• Zero potential for longer time
• Industrial Grade Rugged Construction
• Ryton Body (Acid Alkali Resistant)
• Easy Installation

DESCRIPTION

MicroSet make pH Sensor model MS pH 36 is designed for various Industrial Applications. Annular PTFE junction reference aids in the sensor's resistance to harsh environments and helps prolong sensor life. The robust sensor design makes the MS pH 36 reliable in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

TECHNICAL SPECIFICATION

• Range : 0 to 14 pH
• Body : Ryton
• Type : Combination
• Reference Junction : TEFLON
• Membrane Shape : Rugged Electrode Tip with Semi dome Shape
• Electrolyte : Combination of HGEL +CEP + Polymer Gel
• Sensor Output : mV (± 59.4 mV/ORP change at 25°C)
• Response Time : 95% in 1 second
• Pressure : 100 PSIG
• Temperature : 0 ~ 105°C
• Temperature Compensation : Pt 100 Built-in
• Measurement Tip : Glass
• Junction : Double Junction
• Process Connection : ¾” NPT Male on both Front End and Rear End
• Mounting : Pipeline (Inline) or Immersion (Tank) or Flow Through Chamber
• Cable : Integral Cable 5 Meters with BNC

APPLICATION

• Water Treatment Plant (WTP) Wastewater Treatment Plant (WWTP)
• Effluent Treatment Plant (ETP) Sewage Treatment Plant (STP)
• RO Water Plant Power Plant
• Hydroponics Chemical Industry
• Textile Industry Paper & Pulp
• Beverages / Food Industry Pharma Industry
