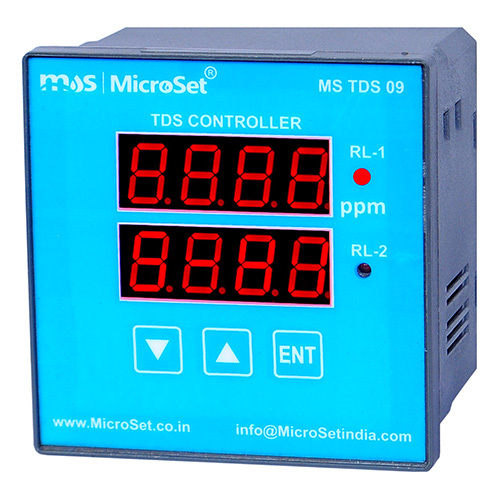

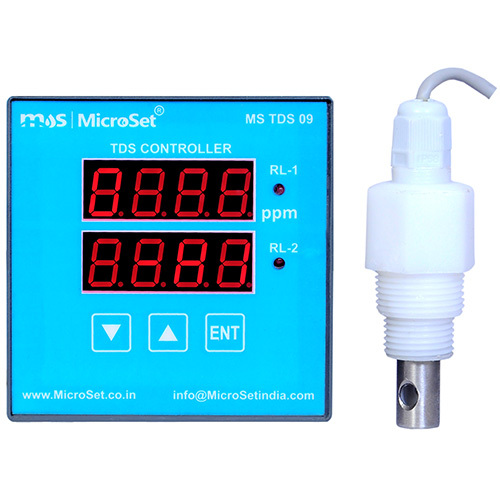

MS TDS 09 TDS Indicating Controller Transmitter Panel

Name: MS TDS 09 TDS Indicating Controller Transmitter Panel
Brand: MICROSET INSTRUMENTATION & CONTROLS
Price: 10800 INR
Availability: InStock

Price 10800 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MS TDS 09 TDS Indicating Controller Transmitter Panel Specification

Rated Voltage
230V AC

Input Current
Sensor Powered, Main Supply Only

Mounting Type
Panel Mounting

Frequency
50 Hz

Protection Level
IP65 (Front Panel)

Operating Temperature
0C to 55C

Efficiency
High

Humidity
<95% RH, Non-Condensing

Phase
Single Phase

Output Voltage
Relay Output (Potential Free)

Usage
Commercial RO

Condition
New

Function
TDS Monitoring, Display, and Control with Relay Output

Application
Industrial

Product Type
Electronic

Dimension (L*W*H)
96 x 96 x 65 mm (Panel Cut-out Size: 92 x 92 mm)

Power Mode
Mains Powered

Voltage
230V AC

Power Consumption
<3 VA

Battery Life
Not Applicable (Mains Powered)

Accessories
TDS Electrode, Mounting Kit, User Manual

Set Point
User Programmable (Two Set Points)

Power Supply Tolerance
+10% / -15%

Measuring Range
0-9999 ppm TDS

Compliance
CE Marked

Enclosure Type
Flame Retardant ABS Casing

Display Type
Dual 4-digit Red Seven Segment LED Display

Sensor Type
Electrolytic Conductivity Cell

Indication
LED Status for Set Points and Relay State

Sensor Cable Length
2 meters (standard), extendable

Relay Output Rating
5A @ 230V AC

Control Action
ON/OFF Relay output for TDS Control

MS TDS 09 TDS Indicating Controller Transmitter Panel About

Experience top-tier control with the MS TDS 09 TDS Indicating Controller Transmitter Panel. Commanding performance merges with a potent dual 4-digit red LED display for precise TDS readings up to 9999 ppm. User-programmable dual set points, a champion-grade ON/OFF relay (5A @ 230V AC), and robust IP65 front protection place this panel in the spotlight. Its flame-retardant ABS casing, extendable electrolytic conductivity cell, and high efficiency empower industrial and commercial RO applications. Secure a special discount from India's leading manufacturer.

Exceptional Features and Versatile Applications

The MS TDS 09 stands apart with its user-friendly programmable set points, extendable sensor cable, and intuitive LED indicators for real-time status updates. Crafted from flame-retardant ABS and boasting IP65 front protection, it suits rigorous industrial and commercial RO environments. Accessories like the TDS electrode, mounting kit, and manual simplify installation and operation. Its digital processing and precise conductivity cell support accurate water quality management in every demanding scenario.

Swift Shipping and Broad Market Presence

This product is supplied across India and exported internationally with options for express shipping and quick dispatch to minimize delivery times. Main domestic markets include major commercial cities, while global clients benefit from efficient freight solutions. Sample policies are convenient for industrial evaluators, ensuring businesses can test functionality before larger ordering. Choose MS TDS 09 for assured rapid service and global supply reliability.

FAQ's of MS TDS 09 TDS Indicating Controller Transmitter Panel:

Q: How do I install the MS TDS 09 TDS Indicating Controller Transmitter Panel?

A: Installation is straightforward-simply mount the panel using the provided mounting kit, connect it to the main power supply, and attach the sensor using the standard or extended cable. The user manual included guides you through each step.

Q: What are the key benefits of using the MS TDS 09 panel in industrial or commercial RO systems?

A: The panel offers precise TDS measurement, programmable set points for automation, and real-time status indication. Its robust build and IP65 protection ensure durability and reliability, enhancing water quality management and operational efficiency.

Q: Where is the MS TDS 09 panel typically applied?

A: It is widely used in industrial settings and commercial reverse osmosis (RO) water treatment systems for monitoring and controlling Total Dissolved Solids (TDS) levels.

Q: When should the sensor cable be extended, and how is it done?

A: Extend the sensor cable when the distance between the panel and measurement point exceeds 2 meters. Extension is easily accomplished by using compatible cables as described in the user manual.

Q: What process does the panel use to control TDS?

A: It utilizes a digital electrolytic conductivity cell to measure TDS, processes the signal digitally, and actuates relay outputs as per the programmed set points to maintain optimal TDS levels.

Q: How is the power supplied to the MS TDS 09, and what is its energy efficiency?

A: The panel operates on a 230V AC mains power supply and is highly energy efficient, consuming less than 3 VA, making it cost-effective for continuous operation.

Technical Details

Range : 20.00 ppm, 200.0 ppm, 2000 ppm, 20.00 ppt, 200.0 ppt (Specify while ordering )
Resolution : 0.01 ppm,0.1 ppm,1 ppm, 0.01 ppt, 0.1 ppt
Accuracy : 1% of FS
Display : 4 digit Dual Red LED Display (Upper Display for TDS & Lower Display for Set Value)
Calibration : Single point manual Calibration
Calibration Slope : 30% of Display Reading

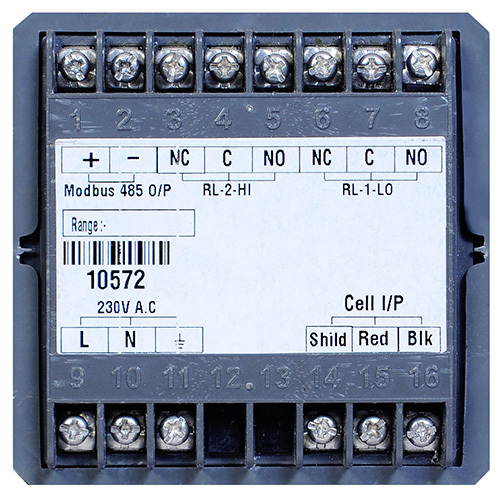

Current Output : Isolated 4-20 mA DC
Relay Output : Two Relay Outputs (potential free Contact of 5 Amp Max.)
Control Setting : Two Set Point with High & Low Value Setting
Environment : 5 to 50C
Power Requirement : 230V AC 10%, 50Hz single phase
Dimension : 96 x 96 x 65 mm (Grey ABS Cabinet)
Weight : 400 grams for Instrument only (Approx.) With
TDS Sensor
MOC of Sensor Body : Delrin
MOC of Electrode : SS 316 for 20, 200, 2000 ppm Range Glass / Platinum for 20, 200 ppt Range
Operating Temp. : 60C Max
Operating Pressure : 2.5 Bar
Process Connection : BSPM and BSPM
Cable : Integral 4 Meter for 20, 200, 2000 ppm Range Integral 5 Meters for 20, 200 ppt Range
Flow Cell (Optional) : MOC: PVC
Connection for Inlet / Outlet : BSPF, Sensor : BSPF
