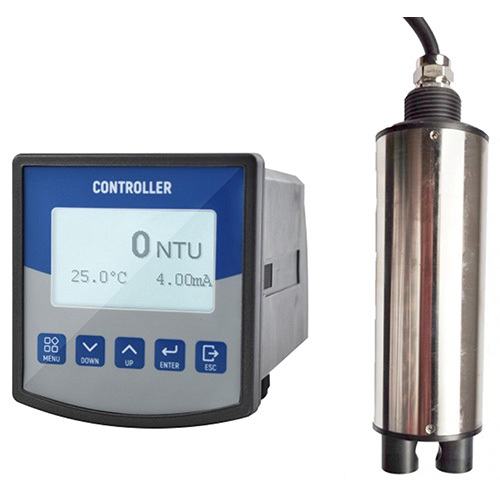

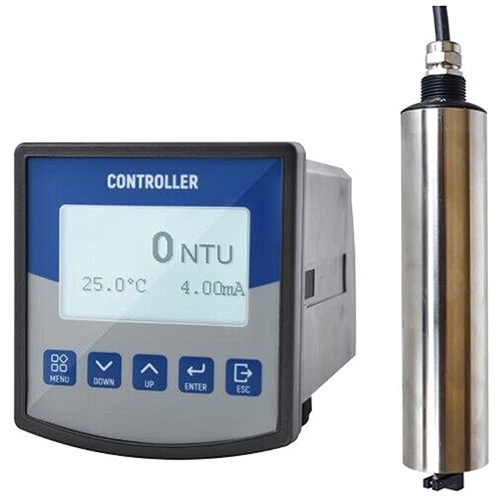

MS TU 11 Turbidity Analyzer-Submerged

Name: MS TU 11 Turbidity Analyzer-Submerged
Brand: MICROSET INSTRUMENTATION & CONTROLS
Price: 72000 INR
Availability: InStock

Price 72000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MS TU 11 Turbidity Analyzer-Submerged Specification

Mounting Type
Online

Humidity
85% RH (non-condensing)

Input Current
0.5A (approx)

Rated Voltage
220V

Efficiency
High (optimized for low maintenance and accurate readings)

Output Voltage
4-20mA current output, optional relay output

Operating Temperature
0 to 60 Degree C

Frequency
50/60 Hz

Protection Level
IP65 (controller), IP68 (probe)

Phase
Single phase

Condition
New

Function
Real-time turbidity measurement (NTU display)

Application
Industrial Use

Dimension (L*W*H)
Controller: 144 144 100 mm (approx)

Weight
5 Kg Kilograms (kg)

Power Mode
AC Power

Voltage
90-260V AC

Power Consumption
15 W

Battery Life
Not applicable (Mains powered)

Accessories
Submerged turbidity probe, display/controller unit, power cable, mounting clamps

Sensor Type

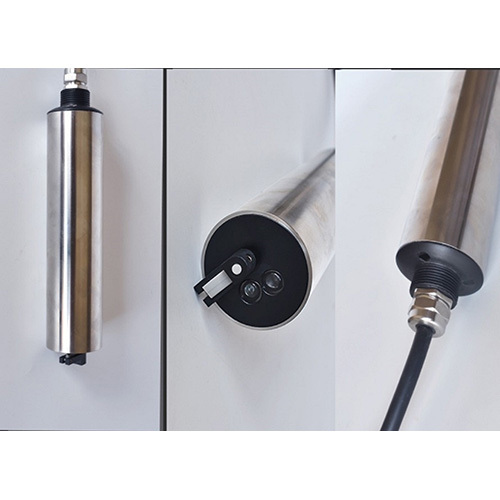

Submerged optical sensor

Display Type
LCD digital display

Measuring Range
0.01 to 1000 NTU

Installation Depth
Up to 3 meters underwater

Calibration
Manual and automatic calibration modes

Resolution
0.01 NTU

Communication Interface
RS485 Modbus

Alarm Output
Configurable threshold relay

MS TU 11 Turbidity Analyzer-Submerged About

Procure the MS TU 11 Turbidity Analyzer-Submerged to experience outstanding performance in real-time turbidity measurement. Featuring top-drawer technology with an inestimable measuring range from 0.01 to 1000 NTU and a high-resolution LCD digital display, this system is engineered for reliability in industrial environments. With a submerged optical sensor, robust RS485 Modbus communication, manual and automatic calibration, and a configurable alarm relay, it excels in efficiency and low maintenance. Shop now for inestimable value and optimal precision, supplied across India by a respected manufacturer.

Diverse Application Areas for Industrial Excellence

The MS TU 11 Turbidity Analyzer-Submerged is tailored for a wide range of industries, making it ideal for applications such as wastewater management, process water monitoring, and environmental assessment. Its robust build ensures dependable operation on surfaces like pipelines, tanks, and water bodies. The analyzer is compatible with various application media, including industrial water, effluents, and liquids in processing environments, providing precise turbidity data for enhanced process control and regulatory compliance in demanding conditions.

Certifications, Sample Policy, and Streamlined Transactions

Our product is shipped goods with accordance to industry standards and certifications, supporting your safety and quality requirements. Sample policies allow you to evaluate the device before committing to a full outlay. Flexible payment terms encompass convenient options for all clients. We facilitate secure transactions, and in the event of a discrepancy, exchange options ensure customer satisfaction. Experience peace of mind with transparent policies designed to fit the operational needs of your enterprise.

FAQ's of MS TU 11 Turbidity Analyzer-Submerged:

Q: How does the MS TU 11 Turbidity Analyzer ensure accurate readings in submerged conditions?

A: The MS TU 11 features a submerged optical sensor with high resolution and robust calibration options, delivering outstanding accuracy even in challenging underwater environments.

Q: What is the process for calibrating the MS TU 11 Turbidity Analyzer?

A: Calibration is user-friendly, offering both manual and automatic modes, allowing operators flexibility to maintain top-drawer measurement precision as per industry standards.

Q: Where can the analyzer be installed for effective application?

A: Designed for industrial settings, the analyzer can be mounted online in pipelines, tanks, and open water bodies. It operates efficiently at depths up to 3 meters underwater.

Q: When should users perform maintenance on this device?

A: The analyzer is engineered for high efficiency with low maintenance; however, routine inspections and cleaning of the sensor are recommended for sustained inestimable performance.

Q: What are the benefits of the RS485 Modbus communication interface?

A: The RS485 Modbus interface enables seamless integration with control systems, facilitating real-time data transmission and remote monitoring for optimal process management.

Q: How can clients pay for and receive the product?

A: Clients benefit from flexible payment terms and sample evaluations. Shipped goods are delivered promptly, and an exchange policy ensures satisfaction if discrepancies arise.

Technical Details

Measuring Range : 0 500 NTU, measurement range can be customizable
Resolution : 0.01%, 0.1
Accuracy : 1.0%FS0.5
Set Points : 02 Nos ( High /Low ) two groups of ON/OFF contact individual high and low
Control Output : 02 Nos Potential Free Relay (3A, 220VAC / 24VDC)
Retransmission Output : 4 to 20 mA isolated
Communication Output : RS 485 MODBUS
Environment Conditions : Temperature 060C, RH 90%.
Supply Voltage : AC 220V10,50/60Hz
Mounting : Panel Mounted
Dimensions of Controllers : 96 96 168 mm
Dimensions of Sensor : 380 x 270 x 80 mm (Flow Type Sensor)
Controller Weight : 0.9 kg
Flow Type Sensor Weight : 4.6 kg
Protection level : IP65(controller), IP67(flow type sensor)
Sensor Cable : 10 Meter
