Residual Dissolved Chlorine Dioxide Analyzer

Send Inquiry

Request To Call Back

Residual Dissolved Chlorine Dioxide Analyzer

Name: Residual Dissolved Chlorine Dioxide Analyzer
Brand: MICROSET INSTRUMENTATION & CONTROLS
Price: 88999 INR
Availability: InStock

Price 88999 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Residual Dissolved Chlorine Dioxide Analyzer Specification

Frequency
50/60Hz

Efficiency
High accuracy

Humidity
85% RH (non-condensing)

Protection Level
IP65 (front panel)

Phase
Single Phase

Input Current
4-20mA

Operating Temperature
0 to 60 DegreeC

Rated Voltage
220V AC

Output Voltage
Not Applicable (Current output only)

Mounting Type
Panel-mount

Condition
New

Function
Measurement of residual dissolved chlorine dioxide concentration in water

Product Type
Online

Application
Water quality monitoring, industrial water treatment, municipal water supply

Dimension (L*W*H)
96mm x 96mm x 100mm (approx)

Power Mode
AC Powered

Voltage
220V AC

Power Consumption
<5W

Battery Life
Not Applicable (Mains Powered)

Accessories
Standard sensor, user manual, mounting kit

Analog Output
Isolated 4-20mA programmable

Data Logging
Real-Time Clock with date and time display

Resolution
0.01 mg/L

Response Time
<30 seconds

Storage Temperature
-20C to 60C

Calibration
Automatic and manual calibration available

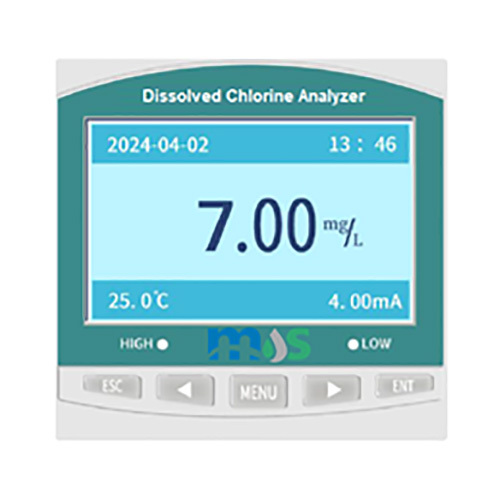

Display Type
Large LCD digital display with backlight

Communication Interface
RS485 MODBUS (optional)

Sensor Compatibility
Compatible with standard chlorine dioxide electrodes

Alarm Function
Programmable high/low alarms

Sample Temperature Range
0-50C

Measurement Range
0 - 20 mg/L

Residual Dissolved Chlorine Dioxide Analyzer About

Discover the celebrated Residual Dissolved Chlorine Dioxide Analyzer-now available at a Special Rate with a Reduced Price, delivering unbeatable performance for water quality professionals. This illustrious device features a large LCD digital display with backlight, boasting a measurement range of 0-20 mg/L and a precise 0.01 mg/L resolution. Fast response time (<30 seconds), programmable high/low alarms, and robust real-time data logging ensure reliable monitoring. Compatibility with standard chlorine dioxide electrodes and IP65-rated panel mounting make this New analyzer ideal for industrial, municipal, and water treatment needs across India. Efficient, accurate, and equipped for modern demands.

Versatile Usage & Application Areas

The Residual Dissolved Chlorine Dioxide Analyzer excels in diverse environments, from municipal water supplies to industrial water treatment facilities. Designed for continuous, online water quality monitoring, it measures chlorine dioxide levels precisely for regulatory compliance and safe consumption. Simply panel-mount the device, connect the standard sensor, and access real-time data and alarms via the large LCD. Its broad sample and operating temperature ranges enable seamless adaptation across varying site conditions.

Sample Availability, Logistics, and Export Markets

Sample units of the Residual Dissolved Chlorine Dioxide Analyzer are available upon request, ensuring prospective clients can estimate its suitability for their processes. With efficient supply ability and streamlined logistics, we serve both domestic and international markets. Our export network spans major regions, with primary emphasis on the Indian domestic market and expanding outreach to various global territories. Reliable shipment and expert support accompany every order, ensuring smooth implementation wherever you operate.

FAQ's of Residual Dissolved Chlorine Dioxide Analyzer:

Q: How does the Residual Dissolved Chlorine Dioxide Analyzer benefit water quality monitoring?

A: The analyzer provides highly accurate, real-time chlorine dioxide measurements, ensuring safety, regulatory compliance, and improved process control in water treatment operations.

Q: What display features does the analyzer offer for user convenience?

A: It is equipped with a large LCD digital display with backlight, allowing for clear visibility of data, date, and time even in low-light environments.

Q: Where can this analyzer be installed and used effectively?

A: It is suitable for panel-mount installation in industrial facilities, municipal water supply plants, and any setting requiring continuous, online residual chlorine dioxide monitoring.

Q: What is the process for calibrating the device?

A: The analyzer supports both automatic and manual calibration modes, enabling quick setup and periodic adjustments for sustained accuracy.

Q: When should users utilize the programmable alarm function?

A: Users should set the programmable high/low alarms to receive instant notifications whenever chlorine dioxide measurements deviate from safe or optimal levels.

Q: How compatible is the analyzer with existing sensors?

A: The device is compatible with standard chlorine dioxide electrodes, simplifying integration into existing water treatment systems.

Technical Details

Range : 0 - 20.00 mg/L (ppm)
Temperature Range : 090C.
Resolution : 0.01 mg/L, 0.1C
Display : 3.5-inch HD IPS colour LCD screen, resolution 480*320
Accuracy : better than 1% or 0.01 mg/L, 0.5C
Temperature Comp. : Manual / automatic, temperature compensation (060C)
Data Storage : one year of data (saved every minute)
Set Points : 02 Nos (High & Low)
Control Output : 02 Nos Potential free Relay (3A, 220VAC / 24VDC)
Output 1 : 4 to 20 mA DC isolated
Output 2 : RS 485 MODBUS
Environment Condition : -2060C, relative humidity 85%
Supply Voltage : 220 VAC10%, 50/60Hz
Mounting : Panel Mounted
Dimensions : 98(L)98 (W)x110(H)mm
Weight : 0.8Kg
Protection : IP 65
