Send InquirypH Indicating Transmitter Weatherproof-MS pH 211T
pH Indicating Transmitter Weatherproof-MS pH 211T Specification
- Output Signal
- 4-20 mA analogue output
- Power Supply
- 24 VDC
- Operating Temperature
- 0C to 60C
- Input Range
- pH 0 to 14
- Temperature Compensation
- Automatic, integrated sensor
- Mounting
- Wall or pipe mountable
- Display
- Digital LCD display for clear pH reading
- Ingress Protection
- IP65 rated
- Enclosure Type
- Weatherproof, MS-body (Mild Steel)
- Application
- Industrial, water treatment, chemical processing
pH Indicating Transmitter Weatherproof-MS pH 211T About
- Online Measurement
- Auto / Manual Temp Compensation
- 4-20 mA DC Output
- On-Line Indication through LCD Display
- Simple operating interface
- 2 Wire System
- Easy Installation
DESCRIPTION
MicroSet pH Indicating Transmitter Model MS pH 211 T is used for various industrial applications. MS pH 211 T is a convenient and cost-effective solution for monitoring and transmitting pH or ORP value. It can accept input from any pH or ORP sensor. MS pH 211 T output is in the form of Analogue 4-20 mA DC two wire.
Why pH Measurement is required?
To check the acidic or alkaline nature of aqueous solution. pH (Potential Hydrogen) is unit of measurement, used to determine the Acidity or Alkalinity of an aqueous solution. Practical pH scale for industrial instrumentation ranges from 0 to 14 pH. The acidic substances range from 0 to 6 and on the other end are the alkaline substances, which range from 8 to 14, with pH 7 being neutral, this is the pH of pure water which is neither very acidic nor very alkaline, is said to be neutral.
How pH is measured?
Although everyone is familiar with Litmus paper, the only reliable way to measure pH is using Potentiometric Combination electrodes. These electrodes develop a millivolts output corresponding to pH value of solution which is directly proportional to the Free Hydrogen ion concentration in an aqueous Solution. These generated raw mill volts are fed to MS pH 211 T where it is processed by amplifier & reading is displayed on meter
TECHNICAL SPECIFICATION
- Type of Input : From pH or ORP Electrode (Compatible to any make Electrode)
- Type of Output : 4 - 20 mA

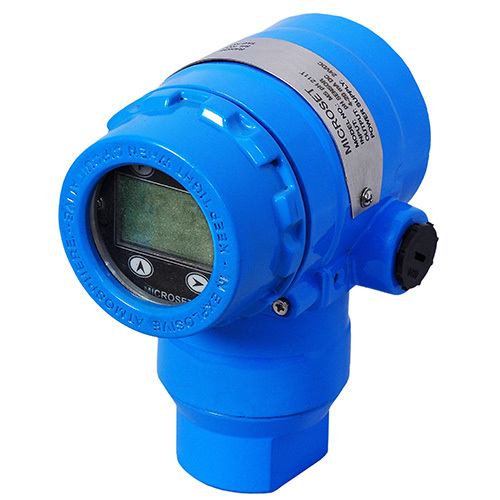

- Display : LCD Display
- Calibration Range : pH : 0 to 14 pH, ORP : 2000mV
- Calibration Points : 3 Point
- Temp Compensation : RTD PT-100 / RTD PT-1000
- Accuracy : pH : 0.01 pH, ORP : 3mV
- Isolation : 1.4 KV between Input, Output & Power Supply

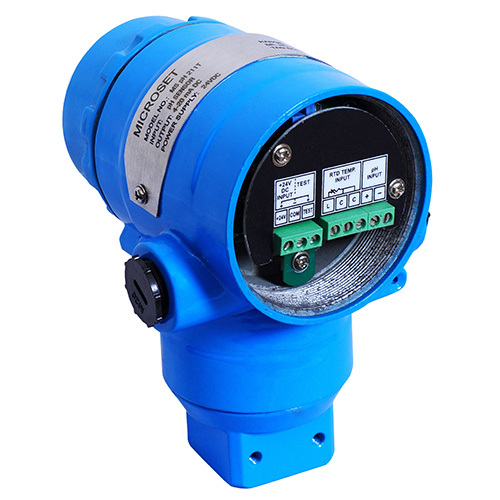

- Sensor Connection : Through Terminals
- Power Supply : 24V DC Two Wire Loop Powered
- Power Consumption : < 50 mW
- Repeatability : 0.05% of Span, at 25C
- Response Time : < 1000 mSec
- Temp Coefficient : 0.05% per C
- Electronic Protection : Weather Proof IP 67
- Dimensions : 155 mm (H) x 105 mm (W) X 130 mm (D)
- Electrical Connections : M20X1.5 (F)

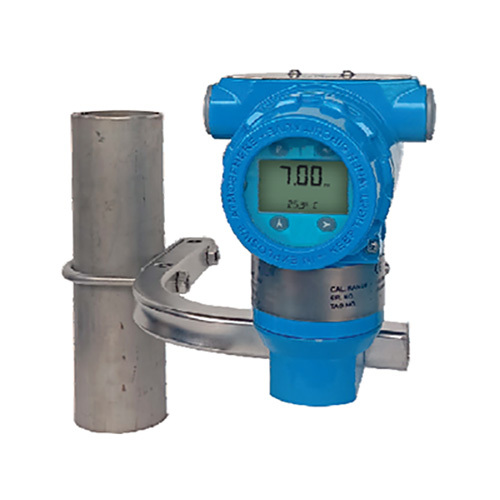

- Mounting : 2 Pipe Mounting (2 U Clamp with Mounting Bracket Included)
- Weight : 1 kg (Approximate)
- Ambient Conditions : Temperature -20 to 55 C / Humidity 5 to 95% Non-condensing
- Housing MOC : Cast aluminum with epoxy coating NEMA 4X
APPLICATION
- Water Treatment Plant (WTP)
- Wastewater Treatment Plant (WWTP)
- Effluent Treatment Plant (ETP)
- Sewage Treatment Plant (STP)
- RO Water Plant
- Power Plant
- Hydroponics
- Chemical Industry
- Textile Industry
- Paper & Pulp
- Beverages / Food Industry
- Pharma Industry
- Scrubber Application
- Pigment Industry
- Steel Industry
- Aqua Culture
Reliable pH Monitoring for Industrial Processes
Engineered for harsh environments, the Weatherproof-MS pH 211T transmitter ensures reliable and accurate pH monitoring in industrial settings. The mild steel enclosure and IP65 rating safeguard internal electronics against dust and water ingress, making it suitable for both indoor and outdoor installations. With an input range of 0 to 14 pH and automatic temperature compensation, it consistently delivers dependable measurements, vital for process control and safety.
User-Friendly Operation and Integration
The transmitter's digital LCD display provides clear, immediate pH data, enabling quick analysis and decision-making. Installation is flexible, with options for wall or pipe mounting, accommodating various field requirements. Its 4-20 mA output signal supports compatibility with numerous process control systems, and the standard two-wire configuration simplifies electrical connections, reducing setup time and maintenance efforts.
FAQ's of pH Indicating Transmitter Weatherproof-MS pH 211T:
Q: How does the pH 211T transmitter ensure accurate pH readings in varying temperatures?
A: The pH 211T is equipped with automatic temperature compensation via an integrated sensor, ensuring that pH readings are corrected for temperature fluctuations within the operating range of 0C to 60C. This maintains accuracy up to 0.01 pH, even in dynamic process environments.Q: What installation options are available for the Weatherproof-MS pH 211T transmitter?
A: The transmitter is designed for flexible field mounting and can be securely installed on walls or pipes, allowing users to place it near process lines or control stations as needed.Q: When is it ideal to use the Weatherproof-MS pH 211T transmitter?
A: This transmitter excels in industrial, water treatment, and chemical processing applications where precise pH monitoring and reliable transmission to process controllers are crucial for maintaining safety and efficiency.Q: Where can the transmitter be installed given its construction and protection rating?
A: Thanks to its IP65-rated mild steel enclosure, the device is protected against dust and water, making it suitable for both indoor and outdoor installations, even in demanding or wet environments.Q: What is the process for connecting the pH 211T transmitter to a control system?
A: Connection is straightforward with standard two-wire configuration and a 4-20 mA analogue output signal, which easily integrates with most industrial controllers or SCADA systems for real-time pH monitoring.Q: How does the transmitter benefit industrial applications?
A: By providing real-time, accurate pH data and robust signal transmission, the transmitter helps automate process control, improving safety, product quality, and operational efficiency in industrial settings.
