pH Sensor-MS pH 02

About pH Sensor-MS pH 02

FEATURE

• Four Ceramic Junction 🡪 Fast Response due to increased
• porosity,Increased Sensor Life
• Filled with Gel 🡪 Helps to maintain zero potential for longer time
• Industrial Grade Rugged Construction
• Easy Installation

DESCRIPTION

MicroSet make pH Sensor model MS pH 02 is designed for various Industrial Applications. Four ceramic junction reference aids in the sensor's resistance to harsh environments and helps prolong sensor life. The robust sensor design makes the MS pH 02 reliable in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

TECHNICAL SPECIFICATION

• Range : 0 to14 pH
• Body : Derlin
• Type : Combination
• Sensor Output : mV (± 59.4 mV/pH change at 25°C)
• Pressure : 6 Bar
• Temperature : 0 ~ 100°C
• Temperature Compensation : Pt 100 (Optional)
• Junction : Four Ceramic

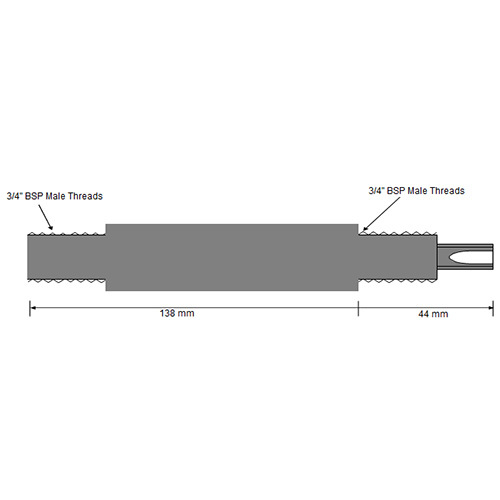

• Process Connection : ¾” BSP Male on Front End and Rear End
• Mounting : Pipeline (Inline) or Immersion (Tank) or Flow Through Chamber
• Cable : Standard Integral Cable 5 Meter with BNC (Optional Leads)
• Cable Length: 10, 15, 20, 25 Meters Also Available (Optional At Extra Cost)
• Please specify Cable Length required while ordering
• Note: Integral Cable Cannot Be Extended from 5 Mtrs. to 10 Mtrs. or so.

APPLICATION

• Water Treatment Plant (WTP)
•  Wastewater Treatment Plant (WWTP)
• Effluent Treatment Plant (ETP)
•  Sewage Treatment Plant (STP)
• RO Water Plant
•  Power Plant
• Hydroponics
•  Chemical Industry
• Textile Industry
•  Paper & Pulp
• Beverages / Food Industry
•  Pharma Industry
