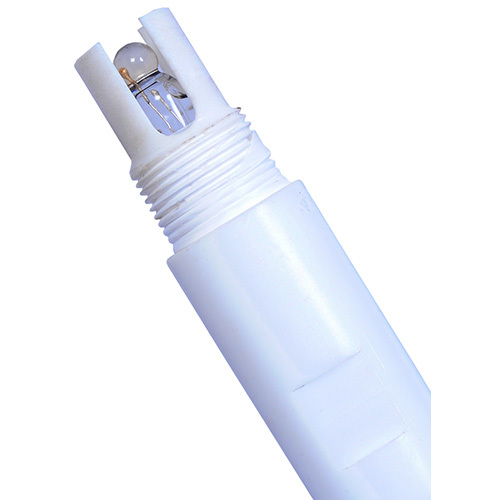

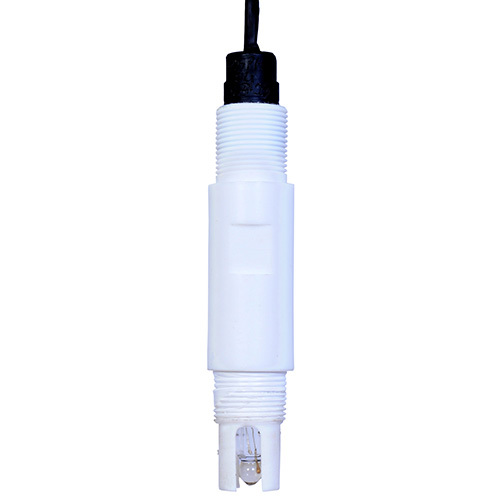

pH Sensor-MS pH 21

Get a Price/Quote

MOQ : 1 Piece

pH Sensor-MS pH 21 Specification

Connection
Threaded connection, cable output

Pressure
Max 6 Bar

Accuracy
0.02 pH

Function
Measures the pH value of liquids

Size
Standard industrial size, body length approx. 120 mm

Installation
In-line or submersible

pH Range
0 to 14 pH

Body Material
Polypropylene (PP)

Reference System
Double junction

Application
Industrial water, wastewater, process monitoring

Output
mV signal

Cable Length
5 meters standard

Temperature Range
0 to 80C

pH Sensor-MS pH 21 About

FEATURE

Double junction
Filled with HGel+ gel suitable for demanding application
Industrial Grade Rugged Construction
Upto 140C Operating Temperature
Upto 6 Bar @ 25C
Suitable for Highly Acidic & Alkaline application
PTFE (Teflon) body for Harsh Application
Optionally Built in Temperature Compensation
Easy Installation

DESCRIPTION

MicroSet make pH Sensor model MS pH 21 is designed for various Industrial Applications. Double junction & HGel+ reference aids in the sensor's resistance to harsh environments helps prolong sensor life. The robust sensor design makes the MS pH 21 reliable in a wide range of aqueous solutions found in pipelines, open tanks, scrubbers or ponds.

TECHNICAL SPECIFICATION

Range : 0 to14 pH
Body MOC : PTFE
Type : Combination
Sensor Output : mV ( 59.4 mV/pH change at 25C)
Pressure : 6 Bar @ 25C
Temperature : 0 140C
Temperature Compensation : Pt 100 (Optional)
Shape of Membrane : Spherical, green glass
Junction : double junction, Ceramic
Reference Electrolyte : HGel+
Reference System : Ag/ Ag Wire (Double Junction)
Process Connection : BSPM on Front End and Rear End
Mounting : Pipeline (Inline) or Immersion (Tank) or Flow Through Chamber

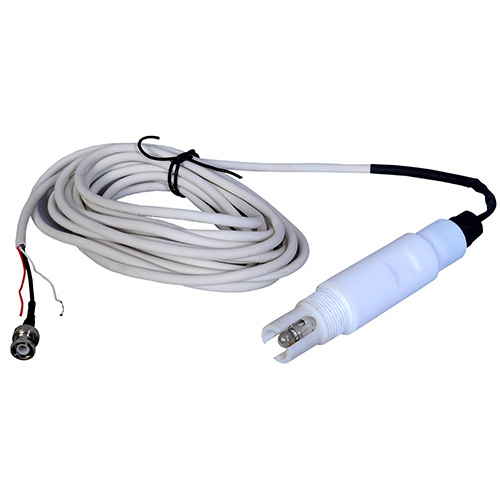

Cable : Standard Integral Cable 5 Meter with BNC (Optional Leads)
Cable Length: 10, 15 Meters also available at extra cost
Please specify Cable Length required while ordering
Note: Integral Cable Cannot Be Extended from 5 Mtrs. to 10 Mtrs. or so.

APPLICATION

Water Treatment Plant (WTP) Wastewater Treatment Plant (WWTP)
Effluent Treatment Plant (ETP) Sewage Treatment Plant (STP)
RO Water Plant Power Plant
Hydroponics Chemical Industry
Textile Industry Paper & Pulp
Beverages / Food Industry Pharma Industry

Precision for Industrial Environments

Engineered with high precision in mind, the MS pH 21 sensor guarantees reliable pH readings for various liquid-media applications. Its polypropylene construction resists harsh conditions, making it ideal for continuous operation in demanding industrial and wastewater treatment plants. The double junction reference system minimizes contamination, ensuring consistent measurements.

Flexible Installation Options

The sensor supports both in-line and submersible installations to fit the needs of diverse setups. Its standard threaded connection and 5-meter cable accommodate a range of positions, from tanks to pipelines, supporting process optimization and easy integration into current monitoring systems.

FAQ's of pH Sensor-MS pH 21:

Q: How do I install the MS pH 21 pH Sensor in my process system?

A: The MS pH 21 pH Sensor can be installed in-line using its standard threaded connection or submersed directly into tanks or pipes. Its robust 5-meter cable supports flexible placement and integration into control systems for continuous monitoring.

Q: What liquids can the pH Sensor-MS pH 21 measure?

A: This sensor is designed to measure the pH levels of a wide variety of liquids, making it suitable for applications in industrial water treatment, wastewater monitoring, and general process control across diverse industries.

Q: When should I use a double junction reference system like the MS pH 21 offers?

A: A double junction reference system is beneficial in processes with high contamination potential or aggressive chemicals, as it reduces interference and prolongs sensor life, making it ideal for industrial and wastewater environments.

Q: Where is the optimal location for installing the pH Sensor-MS pH 21?

A: Optimal installation sites are where consistent and representative liquid samples can be accessed, such as main pipelines or tanks. The sensor's build allows for flexible positioning, whether in-line or fully submersed, based on process requirements.

Q: What is the process for calibrating the MS pH 21 sensor?

A: Calibration involves connecting the sensor to a pH meter and immersing it in standard buffer solutions, typically at pH 4, 7, and 10. This ensures the sensor outputs accurate millivolt signals corresponding to known pH values.

Q: How does the sensor benefit my industrial water or wastewater application?

A: By providing fast, accurate, and reliable pH readings (with 0.02 pH accuracy), the MS pH 21 supports optimal process control, helps ensure regulatory compliance, and minimizes downtime by detecting pH deviations quickly.
