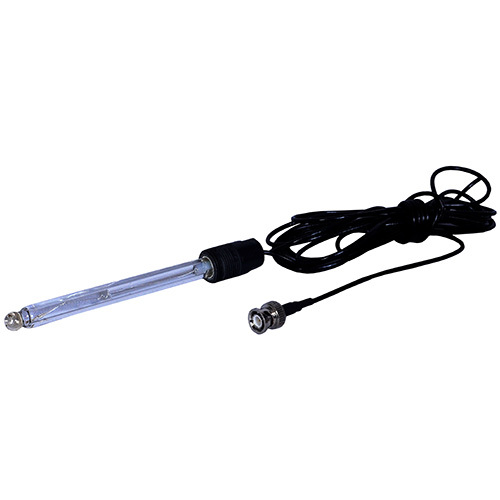

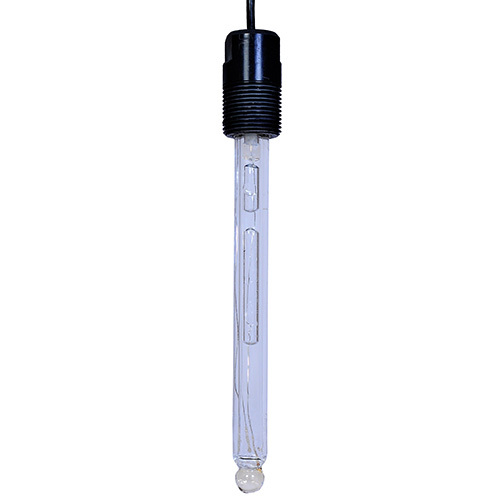

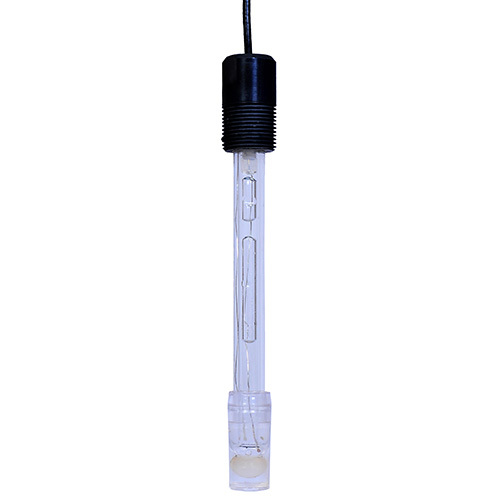

pH Senso-MS pH 03

Get a Price/Quote

MOQ : 1 Piece

pH Senso-MS pH 03 Specification

Pressure
0 to 6 bar

Accuracy
0.01 pH

Connection
BNC connector

Function
Measurement of pH in liquids

Size
12 mm diameter, 120 mm length

Body Material
Glass

Application
Laboratory, industrial, water analysis

Electrode Type
Combination electrode

Temperature Range
0 to 60C

Response Time
< 30 seconds

Reference System
Ag/AgCl

Measuring Range
0 to 14 pH

Cable Length
1 meter

Storage Solution
KCl solution

pH Senso-MS pH 03 About

FEATURE

Four Ceramic Junction Fast Response due to increased porosity,
Increased Sensor Life
Filled with Gel Helps to maintain zero potential for longer time
Industrial Grade Rugged Construction
Easy Installation

DESCRIPTION

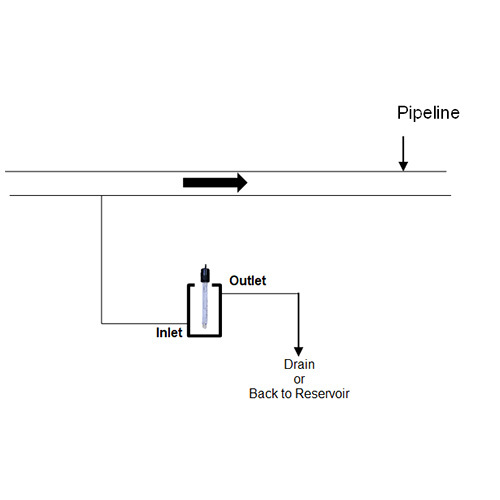

MicroSet make pH Sensor model MS pH 03 is designed for various Industrial Applications. Four ceramic junction reference aids in the sensor's resistance to harsh environments and helps prolong sensor life. The robust sensor design makes the MS pH 03 reliable in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

TECHNICAL SPECIFICATION

Range : 014 pH
Sensor Output : mV ( 59.4 mV/pH change at 25C)
Body : Glass
Type : Combination
Junction : Four Ceramic Junction
Pressure : 6 Bar
Temperature : 0 100C
Shaft Length : 120 mm
Shaft Diameter : 12 mm
Membrane Resistance : 200 to 500 M
Temp. Compensation : Pt 100 (Optional)
Process Connection : PG 13.5
Cable : Standard Integral 5 Meters with BNC (Optional Leads)
Cable Length : 10, 15, 20, 25 Meters Also Available

(Optional At Extra Cost)

Please specify Cable Length required while ordering
Note: Integral Cable Cannot Be Extended from 5 Mtrs. to 10 Mtrs. or so.

APPLICATION

Water Treatment Plant (WTP)
Wastewater Treatment Plant (WWTP)
Effluent Treatment Plant (ETP)
Sewage Treatment Plant (STP)
RO Water Plant
Power Plant
Hydroponics
Chemical Industry
Textile Industry
Paper & Pulp
Beverages / Food Industry
Pharma Industry

Versatile pH Measurement Solution

The Senso-MS pH 03 is built for precise measurement of pH in a diverse range of liquids, making it ideal for laboratories, industrial setups, and water analysis projects. Its robust glass body and accurate reference system ensure dependable results in demanding environments, catering to both routine analysis and research requirements.

Enhanced Accuracy and Fast Response

Experience superior reliability with an accuracy of 0.01 pH and a response time of less than 30 seconds. The high-sensitivity combination electrode, coupled with the Ag/AgCl reference system, assures precise readings while enabling users to respond quickly to dynamic testing needs, saving both time and resources.

Ease of Use and Compatibility

The electrode features a standard BNC connector and a 1-meter cable, enabling seamless integration with commonly used pH meters. Its standard size (12 mm diameter, 120 mm length) supports easy handling and placement in varied sample types, enhancing efficiency in everyday workflows.

FAQ's of pH Senso-MS pH 03:

Q: How do I properly use and connect the pH Senso-MS pH 03 electrode?

A: To use the pH Senso-MS pH 03, connect the BNC connector to your compatible pH meter. Ensure the electrode bulb is fully submerged in the liquid sample for accurate readings. The 1-meter cable provides flexibility in sample placement, and the electrode can be used directly in laboratories, water analysis plants, or industrial sites.

Q: What is the recommended process for storing and maintaining the electrode?

A: Store the pH electrode in KCl storage solution whenever not in use to maintain optimal performance and extend its lifespan. Regularly rinse the glass membrane with distilled water after each measurement and avoid wiping to prevent damaging the sensitive glass surface.

Q: Where can the pH Senso-MS pH 03 be effectively applied?

A: This electrode is suited for laboratory analysis, industrial process monitoring, and water quality testing. Its broad compatibility and robust design make it appropriate for numerous applications involving the measurement of pH in liquids across research, manufacturing, and environmental studies.

Q: What benefits does the glass body provide compared to other materials?

A: The glass body ensures chemical resistance and high durability, making the electrode suitable for a wide range of liquid samples, including harsh or corrosive environments. It also supports consistent and accurate measurements over repeated usage.

Q: When should the electrode be replaced?

A: The electrode should be replaced when readings become unstable, response times lengthen significantly, or if there are visible cracks or contamination on the glass body. Under proper maintenance and storage conditions, the electrode can be used reliably for many tests.

Q: How quickly does the electrode provide results, and how accurate are they?

A: The Senso-MS pH 03 delivers results in less than 30 seconds, with high precision measuring up to 0.01 pH. This swift response and accuracy are ideal for time-sensitive and critical analysis tasks.

Q: What is the typical measuring and operating range of this electrode?

A: The electrode can measure the full pH range of 0 to 14, with an operating temperature range of 0 to 60C and pressure handling up to 6 bar, making it versatile for various laboratory and industrial settings in India.
