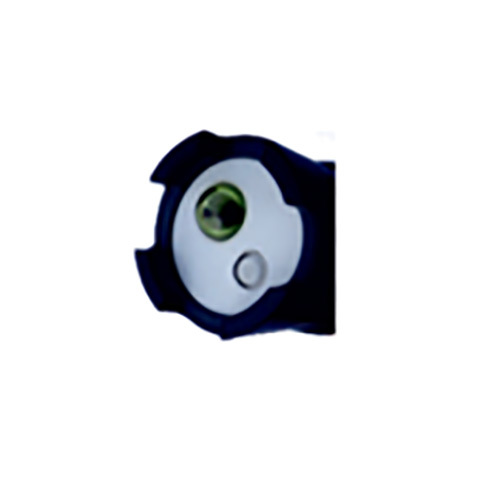

pH Sensor-MS pH 36

Get a Price/Quote

MOQ : 1 Piece

pH Sensor-MS pH 36 Specification

Accuracy
0.01 pH

Pressure
0-4 bar

Connection
Waterproof BNC connector

Function
Measures pH value of solutions

Size
12 mm x 120 mm

Body Material
Polypropylene

Application
Industrial and laboratory use

Response Time
< 30 seconds

Storage Solution
KCl solution

Reference Electrode
Ag/AgCl

Measurement Range
0 to 14 pH

Temperature Range
0C to 60C

Cable Length
1 meter

About pH Sensor-MS pH 36

FEATURE

Annular PTFE Junction Fast Response
Due to increased porosity, Increased Sensor Life
Suitable for Viscous, Slurry Application
Easy cleaning
Filled with Gel Helps to maintain
Zero potential for longer time
Industrial Grade Rugged Construction
Ryton Body (Acid Alkali Resistant)
Easy Installation

DESCRIPTION

MicroSet make pH Sensor model MS pH 36 is designed for various Industrial Applications. Annular PTFE junction reference aids in the sensor's resistance to harsh environments and helps prolong sensor life. The robust sensor design makes the MS pH 36 reliable in a wide range of aqueous solutions found in pipelines, open tanks or ponds.

TECHNICAL SPECIFICATION

Range : 0 to 14 pH
Body : Ryton
Type : Combination
Reference Junction : TEFLON
Membrane Shape : Rugged Electrode Tip with Semi dome Shape
Electrolyte : Combination of HGEL +CEP + Polymer Gel
Sensor Output : mV ( 59.4 mV/ORP change at 25C)
Response Time : 95% in 1 second
Pressure : 100 PSIG
Temperature : 0 105C
Temperature Compensation : Pt 100 Built-in
Measurement Tip : Glass
Junction : Double Junction
Process Connection : " NPT Male on both Front End and Rear End
Mounting : Pipeline (Inline) or Immersion (Tank) or Flow Through Chamber
Cable : Integral Cable 5 Meters with BNC

APPLICATION

Water Treatment Plant (WTP) Wastewater Treatment Plant (WWTP)
Effluent Treatment Plant (ETP) Sewage Treatment Plant (STP)
RO Water Plant Power Plant
Hydroponics Chemical Industry
Textile Industry Paper & Pulp
Beverages / Food Industry Pharma Industry

High Precision Measurement

The MS pH 36 ensures accurate pH monitoring, with a measurement range of 0 to 14 pH and a high accuracy of 0.01 pH. Whether used in research labs or industrial settings, its swift response time of under 30 seconds allows for efficient process adjustments and reliable data collection.

Robust and Versatile Design

Built from resilient polypropylene and engineered to withstand temperatures from 0C to 60C, the MS pH 36 is suitable for diverse environments. Its waterproof BNC connector and compact size make installation simple and ensure compatibility with most standard meters.

Reliable Performance for Demanding Applications

Featuring an Ag/AgCl reference electrode and designed for pressures up to 4 bar, the MS pH 36 delivers consistent performance in both high-pressure industrial processes and delicate laboratory experiments. Proper storage in KCl solution extends its service life and maintains measurement accuracy.

FAQ's of pH Sensor-MS pH 36:

Q: How do I properly store the MS pH 36 pH Sensor when not in use?

A: For optimal performance and longevity, the MS pH 36 should be stored in a potassium chloride (KCl) solution, ensuring that the glass membrane and reference junction remain moist to prevent drying and degradation.

Q: What is the process for connecting the MS pH 36 sensor to pH meters or controllers?

A: The sensor is equipped with a 1-meter cable and a waterproof BNC connector. Simply attach the BNC connector to the corresponding port on your pH meter or controller to establish a secure and reliable connection.

Q: When should I calibrate the MS pH 36 pH sensor?

A: It is recommended to calibrate the pH sensor before each series of measurements, especially when high accuracy is required, or after prolonged storage to ensure measurement reliability.

Q: Where can the MS pH 36 be used effectively?

A: This sensor is designed for versatility, performing reliably in both industrial environments such as process monitoring, water treatment facilities, and laboratory settings including research and educational purposes.

Q: What benefits does the polypropylene body of the MS pH 36 offer?

A: Polypropylene construction provides excellent chemical resistance and durability, making the sensor suitable for harsh environments and a wide variety of aqueous solutions.

Q: How quickly does the MS pH 36 respond to pH changes in a solution?

A: The MS pH 36 has a rapid response time of less than 30 seconds, allowing users to obtain real-time and accurate pH readings for efficient monitoring and process control.
